Specialized Status 140 ALU/OBSD

Specialized Status 140  ALU/OBSD
Specialized Status 140  ALU/OBSD
Specialized Status 140  ALU/OBSD
Specialized Status 140  ALU/OBSD
Specialized Status 140  ALU/OBSD
Specialized Status 140  ALU/OBSD
Specialized Status 140  ALU/OBSD
$5,900.00 Incl. tax
EAN Code:
888818886708
SKU:
93723-7004
Delivery time:
Pick up only - We offer an in-store fitting service for all our bikes

STATUS 2 finds the boundaries of mountain bikes and pushes past them. Read more..

Pick up only - We offer an in-store fitting service for all our bikes
  • Interest free finance available

  • Locally owned and operated for over 30 years

  • Riders work here

  • Instore Workshop

Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride? Oh yeah. STATUS 2 is a bike meant to be ridden, however or wherever you ride.

Whether you are on the trails, at the bike park, in the streets, or just cutting turns with your friends on a local hill, the STATUS 2 will allow you to ride your way.

BUILT BY RIDERS: Each build starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It’s not for the gram counter—it’s for those riders who push the boundaries of progression and come back for more.

RIDE DYNAMICS TUNED: Before showing up at your doorstep or local bike shop, each STATUS 2 gets a special shock tune from our Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The characteristics of the shock are designed to complement the kinematics of the new STATUS 2 perfectly.

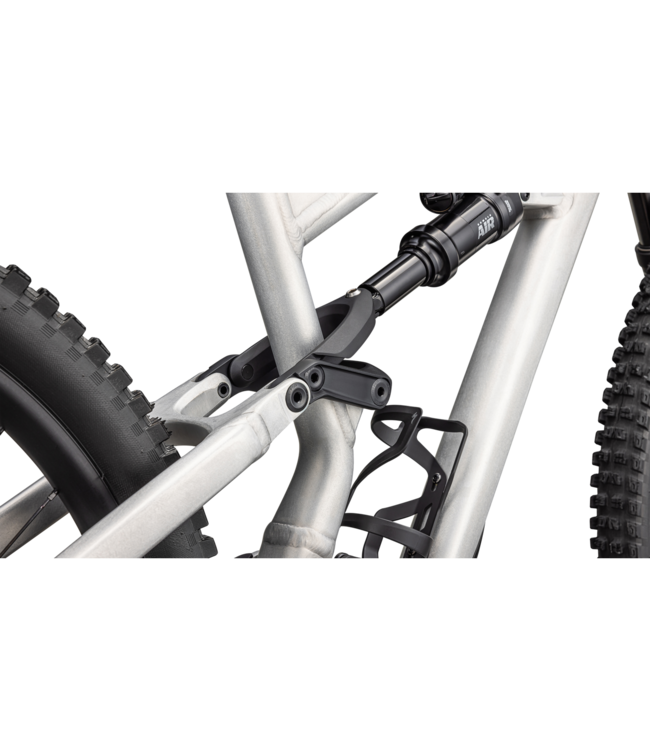

LET’S GET PERSONAL: Each model of STATUS 2 features neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow the rider to finely tune the frame’s geometry to their desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle.

  • 100% Redesigned durable alloy chassis
  • New, more durable alloy rims
  • Horst Link geometry adjust flip chip
  • Updated geometry for more usability
  • Curated parts spec for your desired ride experience
Specifications
FRAMESET
Frame
M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 140mm of travel
Seat Binder
Alloy, 38.6mm
SUSPENSION
Rear Shock

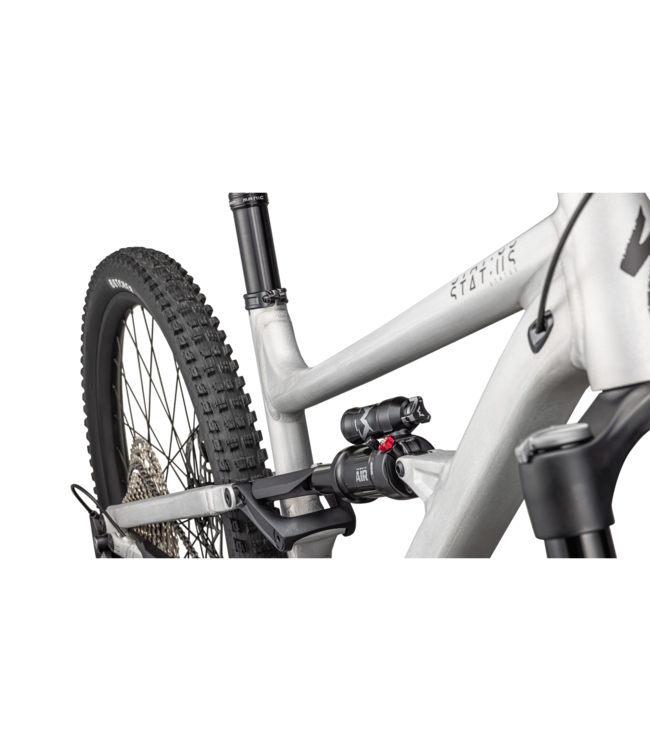

Marzocchi Bomber Air, Ride Dynamics Trail Tune, 2-position non-indexed compression sweep, w/ LSR adjustment, S1:210x50mm, S2-S5:210x52.5mm
Fork
Marzocchi Z1, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 44mm offset, 140mm of travel
COCKPIT
Stem
Alloy Trail Stem, 35mm bar bore
Saddle
Bridge Comp, Hollow Cr-mo rails, 143mm
Grips
Deity Knuckleduster
SeatPost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3-S4: 170mm, S5: 190mm
Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1: 780mm width, S2-S5: 800mm width
BRAKES
Front Brake
TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm
Rear Brake
TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm
DRIVETRAIN
Crankset
Shimano Deore, M6120, 32T ring, 55mm chainline, S1:165mm, S2-S5: 170mm
Cassette
Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t
Chain
Shimano Deore M6100, 12spd
Rear Derailleur
Shimano Deore, M6100, 12pd, Shadow Plus
Shift Levers
Shimano Deore, M6100, I-Spec EV, 12 speed
WHEELS & TIRES
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear Tire
Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3"
Spokes
DT Swiss Industry
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Rims
Specialized, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes
Standard, Presta valve
PRODUCT DETAILS
Product ID
221251
WEIGHT
Weight
15.29 kg (33 lb, 11.3 oz)
Weight Size
S3
Geometry
  S1 S2 S3 S4 S5
Crank Length 165 170 170 170 170
Handlebar Width 780 800 800 800 800
Stem Length 40 40 40 40 40
Saddle Width 143 143 143 143 143
Seatpost Length 125 150 170 170 190
Stack (low) 605 609 618 627 636
Stack (high) 601 605 614 623 632
Reach (low) 415 440 465 490 515
Reach (high) 421 446 471 496 521
Headtube Length 100 105 115 125 135
Headtube Angle (low) 64 64 64 64 64
Headtube Angle (high) 64.5 64.5 64.5 64.5 64.5
BB Height (low) 338 338 338 338 338
BB Height (high) 346 346 346 346 346
BB Drop (low) 38 38 38 38 38
BB Drop (high) 30 30 30 30 30
Trail (low) 134 134 134 134 134
Trail (high) 130 130 130 130 130
Fork Length (full) 551 551 551 551 551
Fork Rake/Offset 44 44 44 44 44
Front Center 741 768 798 827 857
Chainstay Length (low) 427 427 427 432 432
Chainstay Length (high) 431 431 431 436 436
Wheelbase 1168 1195 1225 1259 1288
Top-tube Length (horizontal) 549 590 630 671 711
Bike Standover Height 735 735 739 743 747
Seat Tube Length 390 400 420 440 465
Seat Tube Angle (low) 77 77 77 77 77
Seat Tube Angle (high) 77.6 77.6 77.6 77.6 77.6
